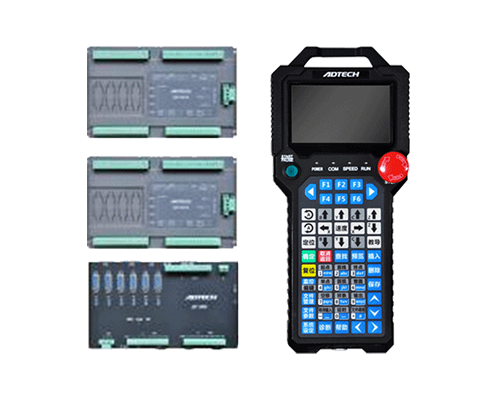

ADT-TV5600 2-4 Axis

♦ Support three axis space straight line interpolation 1 two axis arc and ellipse interpolation etc;
♦ Real time multi-task control technology and hardware interpolation technology ensure high reliability;
♦ 3340: 32 lines input, 16 lines output; 8848: 34 lines input, 18 lines output; 8860: 86 lines input, 40 lines output; 3540: 32 lines input, 16 lines output; 8540: 25 lines input, 8 lines output, fully optical coupling control, excellent anti-interference performance
♦ Support control of 4-8 adhesive injecting terminals;
♦ Use speed perspective arithmetic, automatic smooth corner speed, ensuring smooth process;
♦ Have abundant instruction sets: motion instructions such straight line, arc, single point and ellipse, and instructions such as port output, waiting input, delay pause, selecting glue gun, resetting motor, etc;
♦ Advanced editing functions such as batch modification, array copy, graph shift, graph zooming, automatic rounding and common graph library ect.
♦ Importing computer graphs: convert the graphs in the computer to PLT files or TCF files or G code files, and then convert to process files of adhesive injecting machine through the controller; each process file can save 100,000 process points
♦ Graph display function: display the graphs in the process files intuitively and display the process track dynamically in real time;
♦ Track lag adhesive open and advance adhesive close function, eliminating the adhesive stacking problem at the start point and end point;
♦Wire drawing function: eliminating glue adhesive problem
♦Support cycle processing, single processing, automatic processing and step processing ect
♦ File instruction and edit function, provide advanced edit functions such as batch modification, array copy, graph shift, graph zooming and automatic rounding; common graph library is also available;
♦ Flash memory reading-writing function: read and write process files in flash memory disk;
♦ Convenient help system, calling out help document by pressing shift+F1 in any interface.
